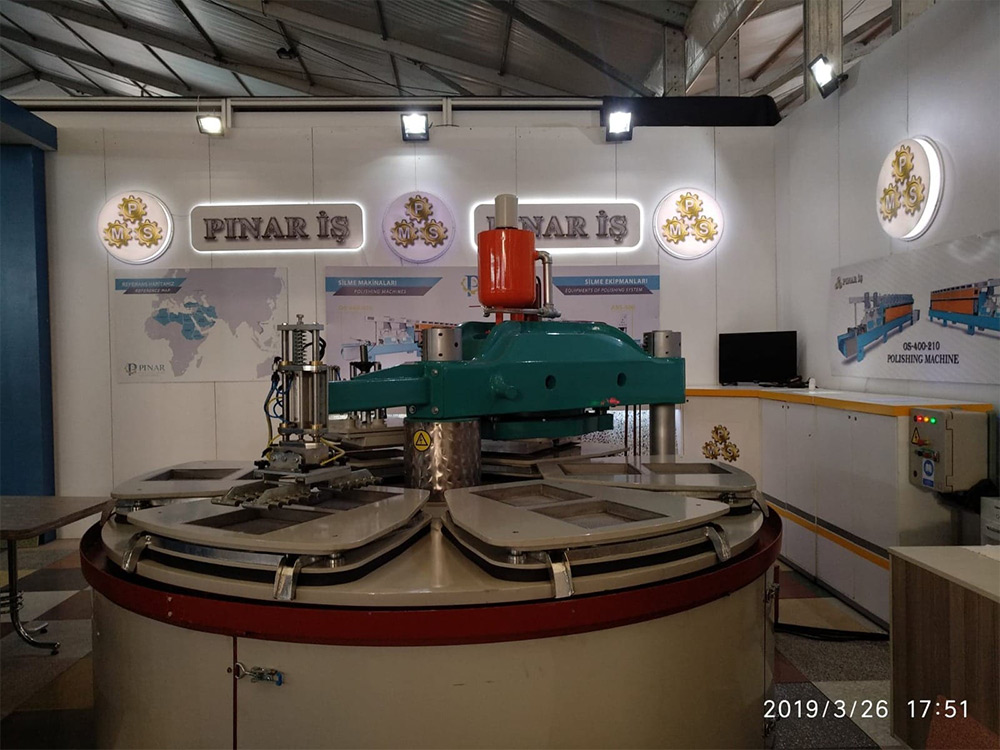

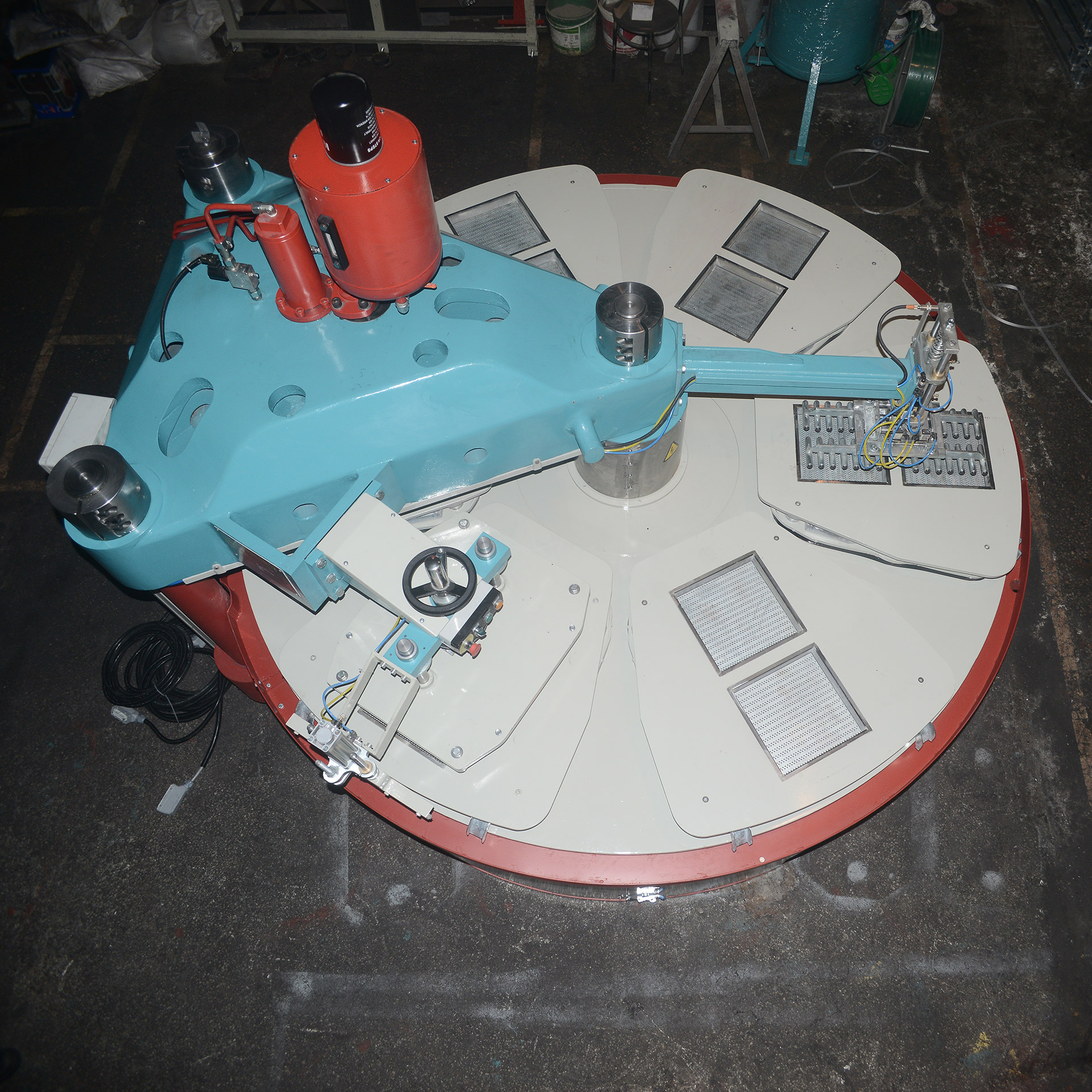

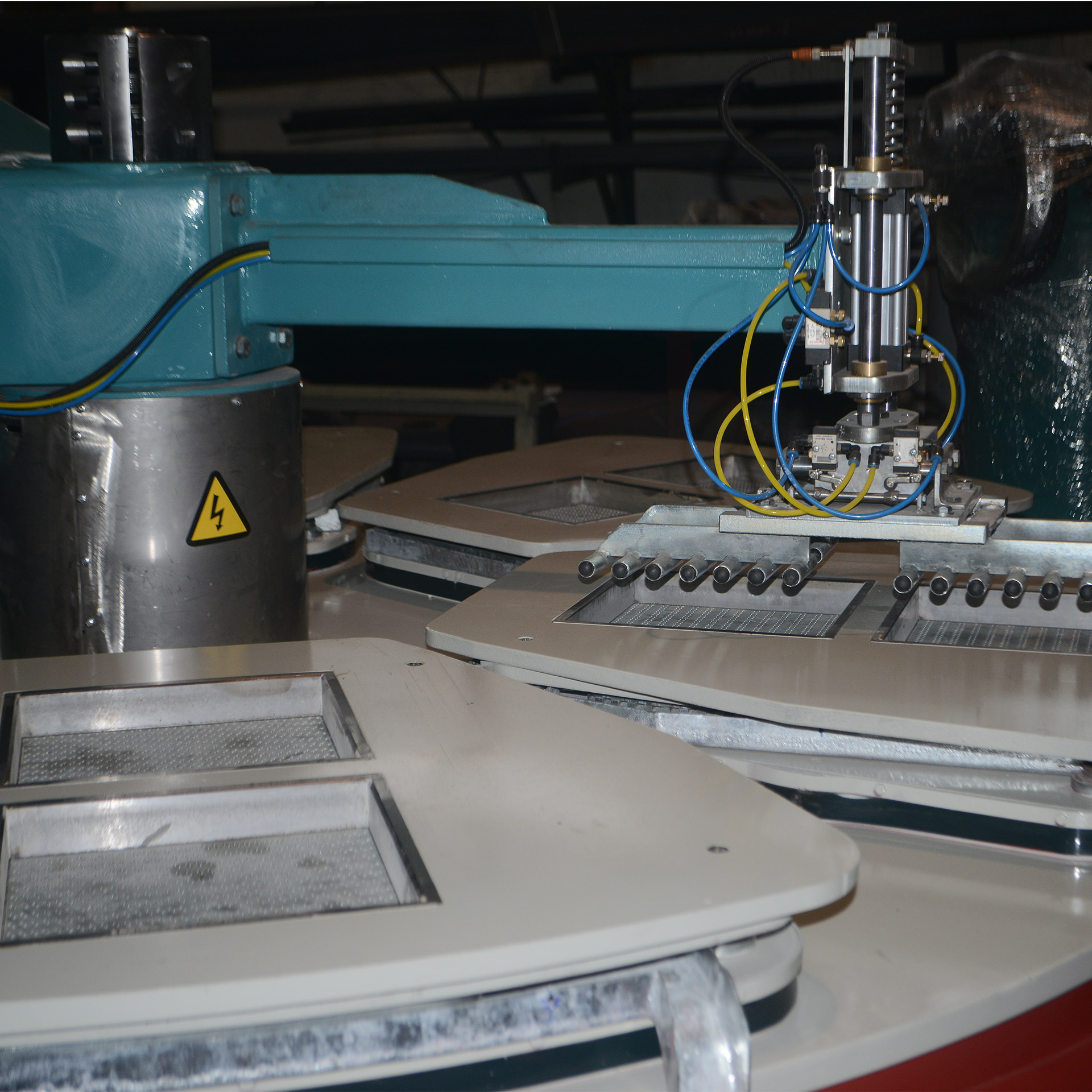

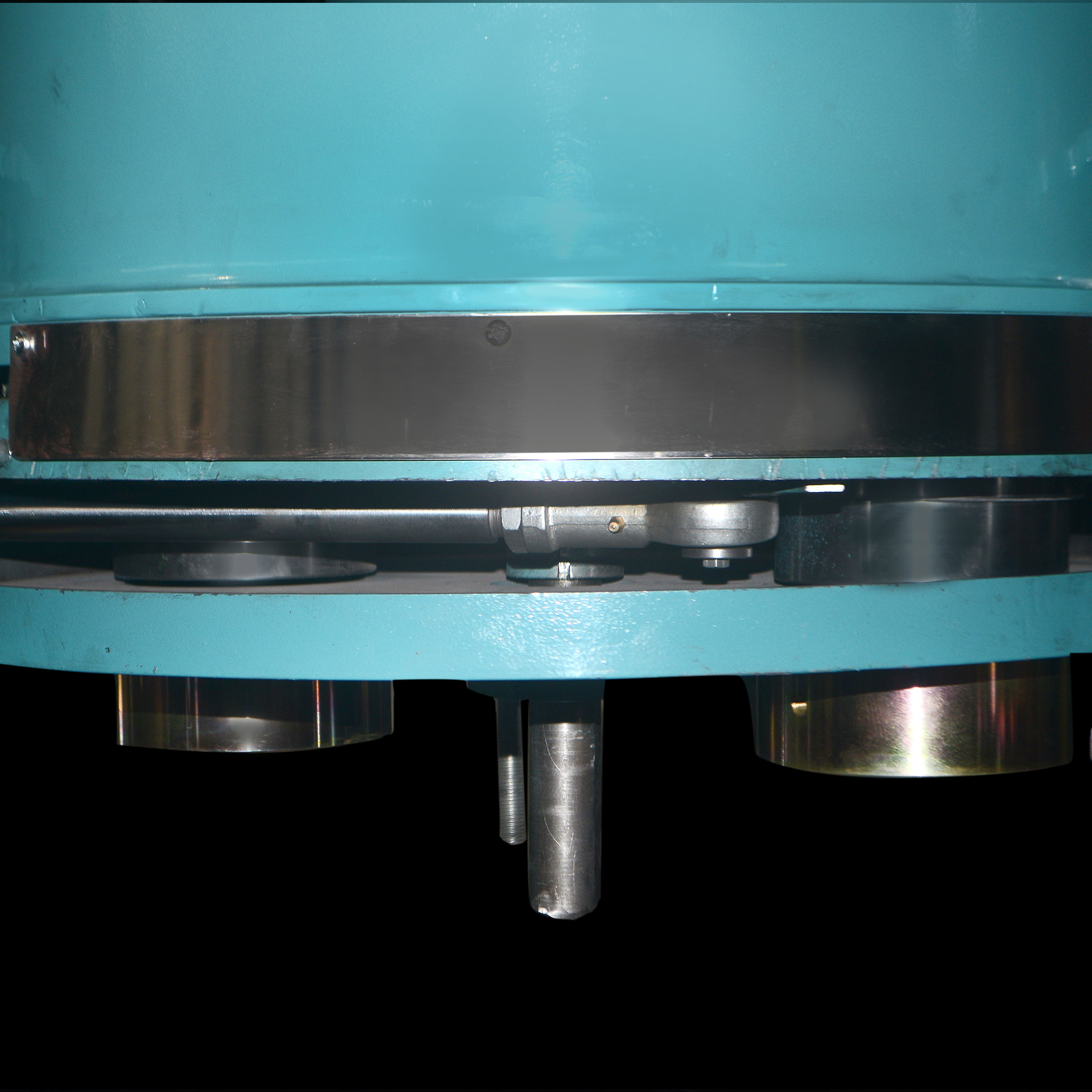

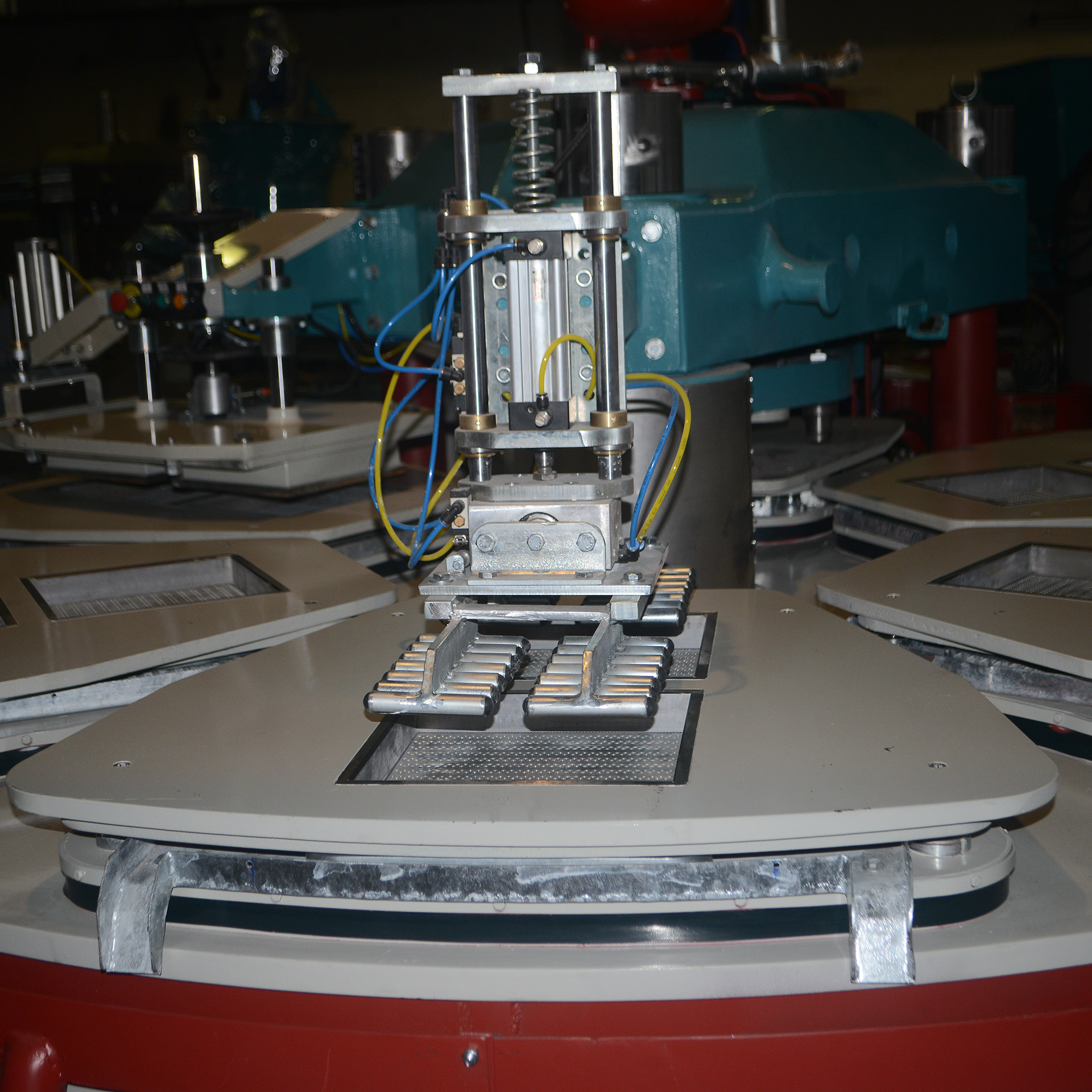

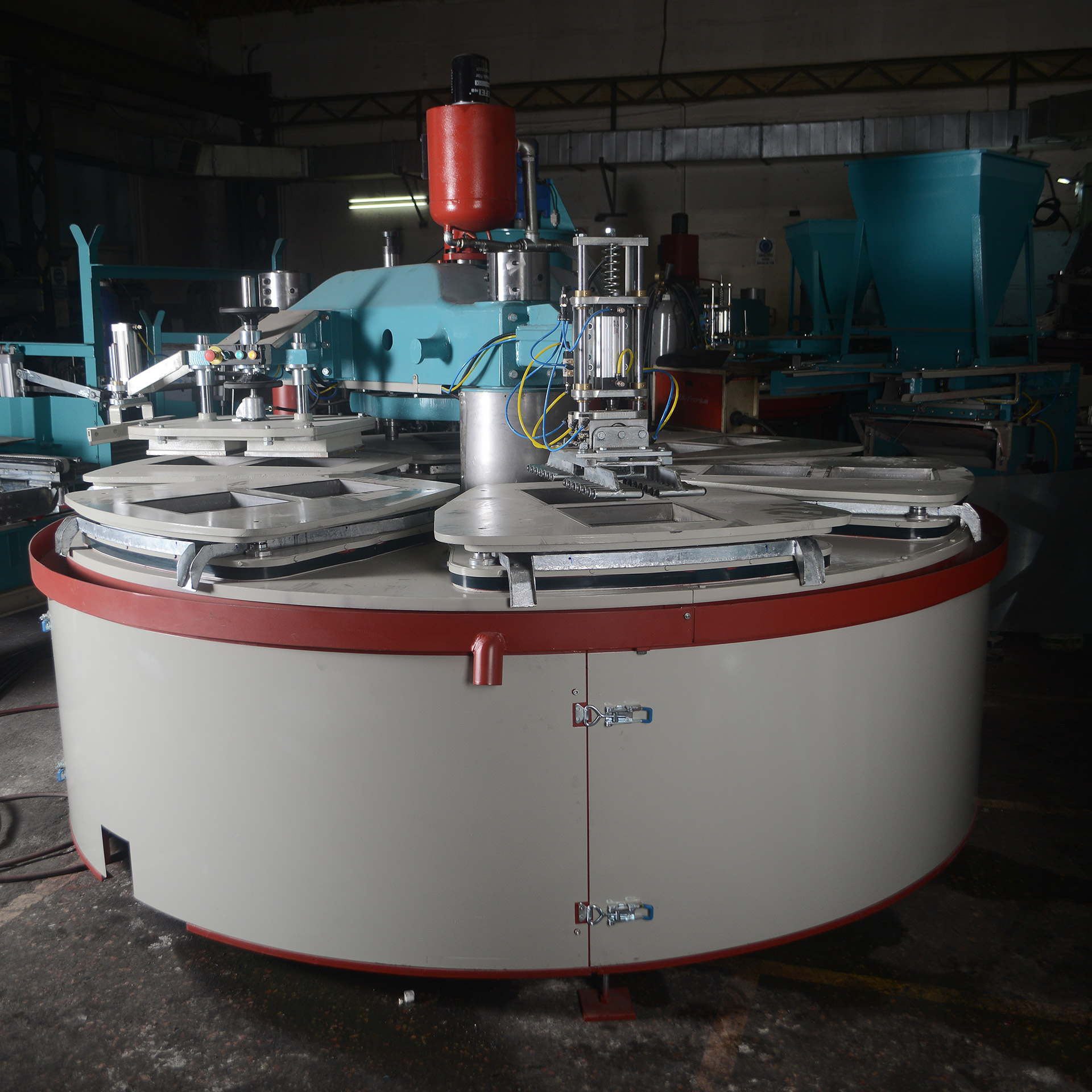

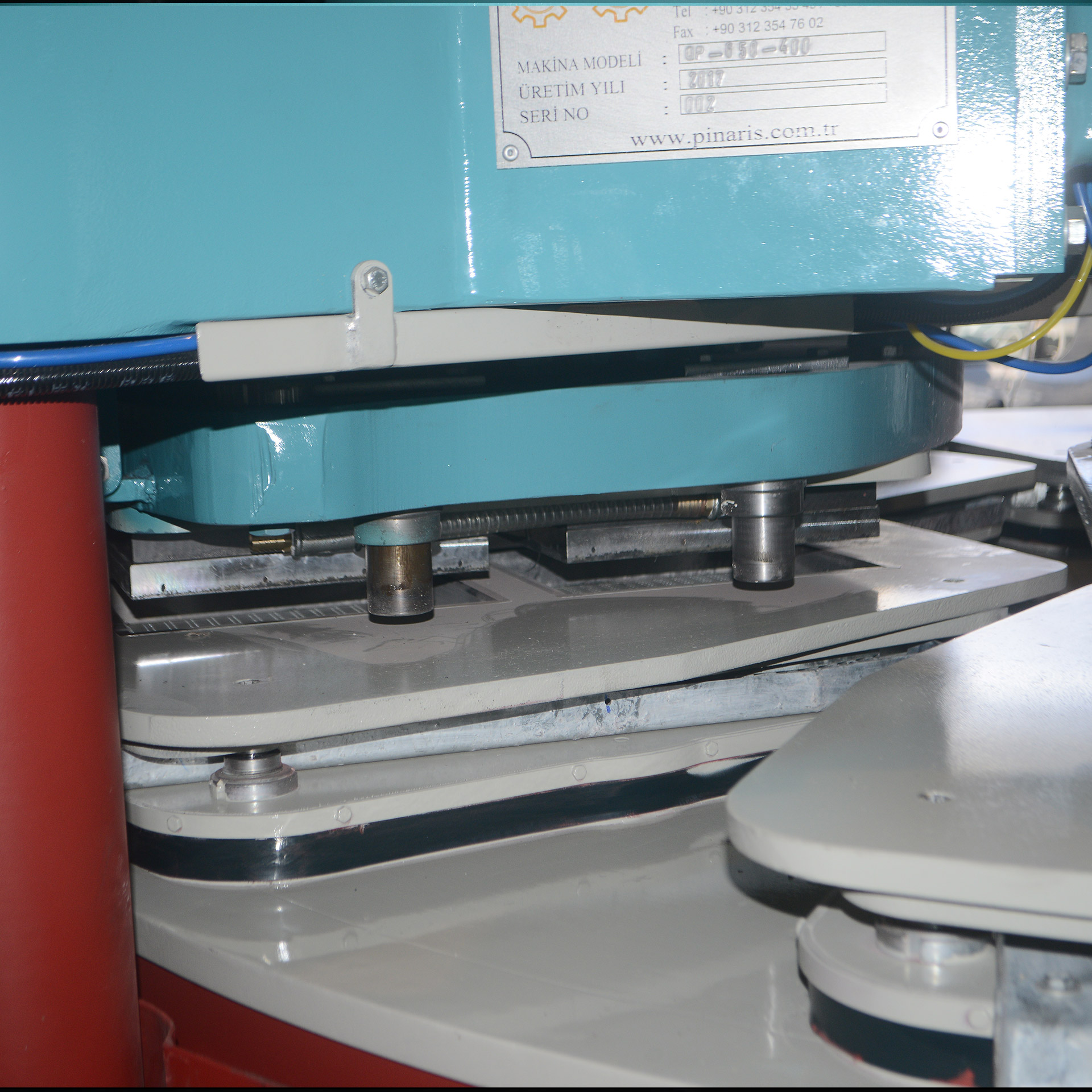

The OP650-400 Automatic Press offered by Pınar Tile Machines is a 6-station, automatic circular press used in the production of single or double layer tiles up to 50 x 50 cm.
TECHNICAL SPECIFICATIONS
| OP-650-400 | |
|---|---|
| Maximum Pressing Force | 350 Ton |
| Number of Stations | 6 |
| Print Dimensions (cm) | 30×30, 33×33, 40×40, 30×60, 50×50, 40x 60 |
| Compression Speed | 6 presses/min |
| Production Capacity | 518 m2, 640 m2, 460 m2, 430 m2, 660 m2, 650 m2 |
| Weight | 15 Ton |
| Electricity Consumption | 31 kw |

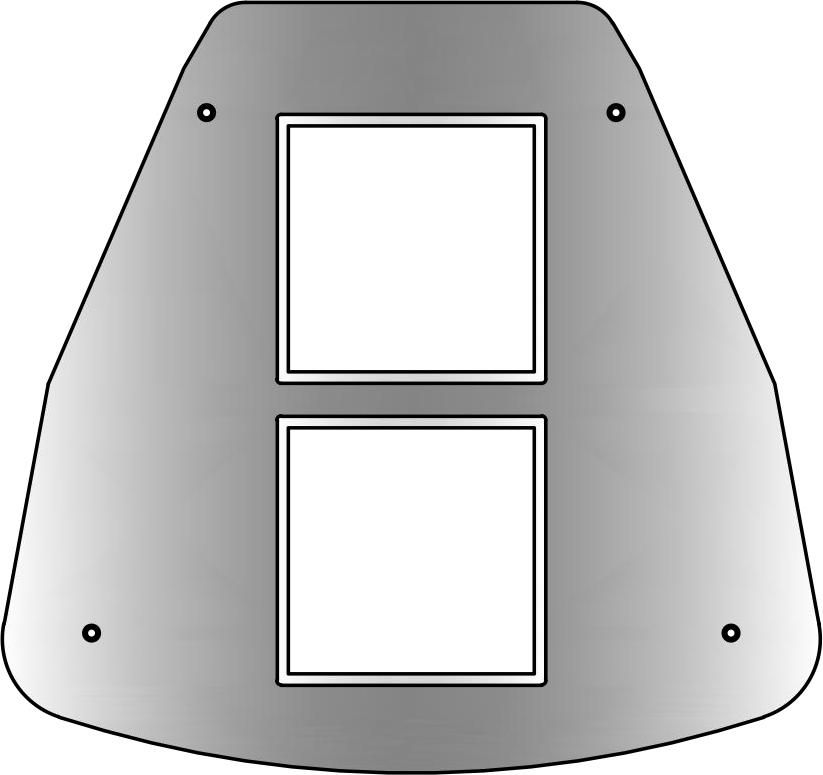

30 x 30 cm

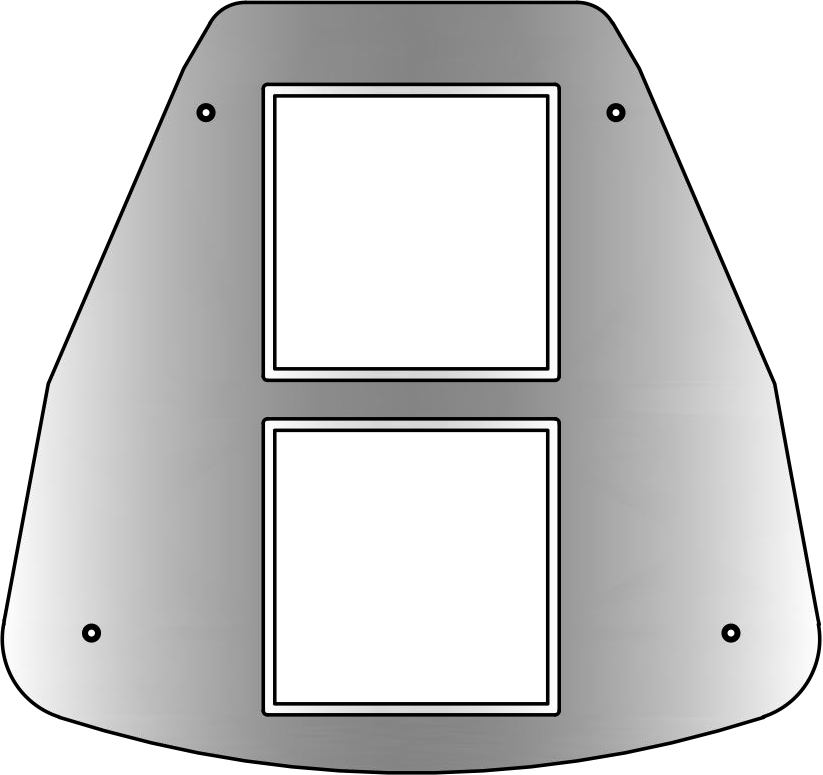

33 x 33 cm

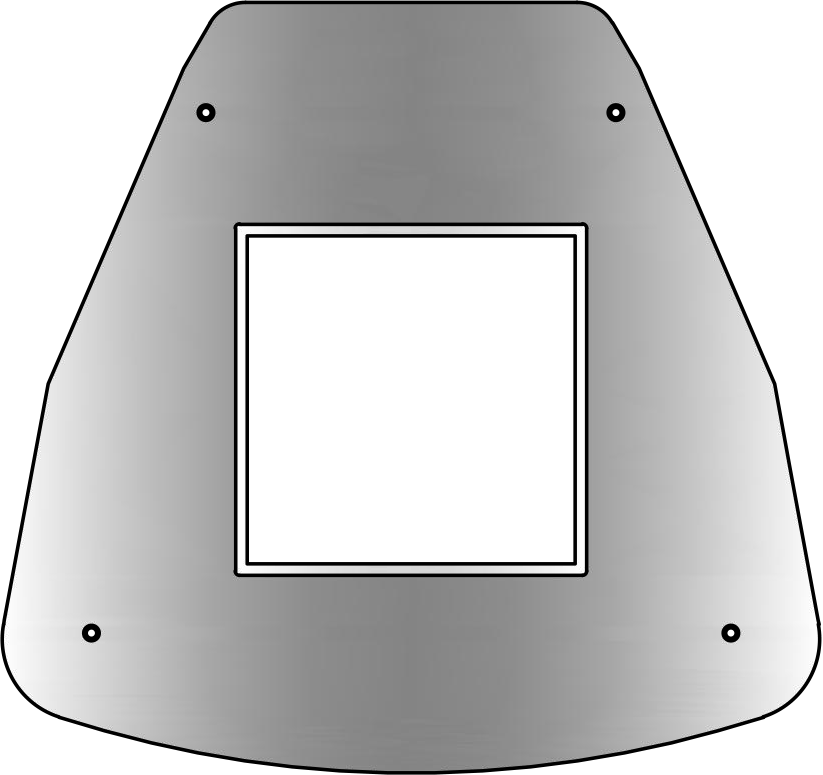

40 x 40 cm

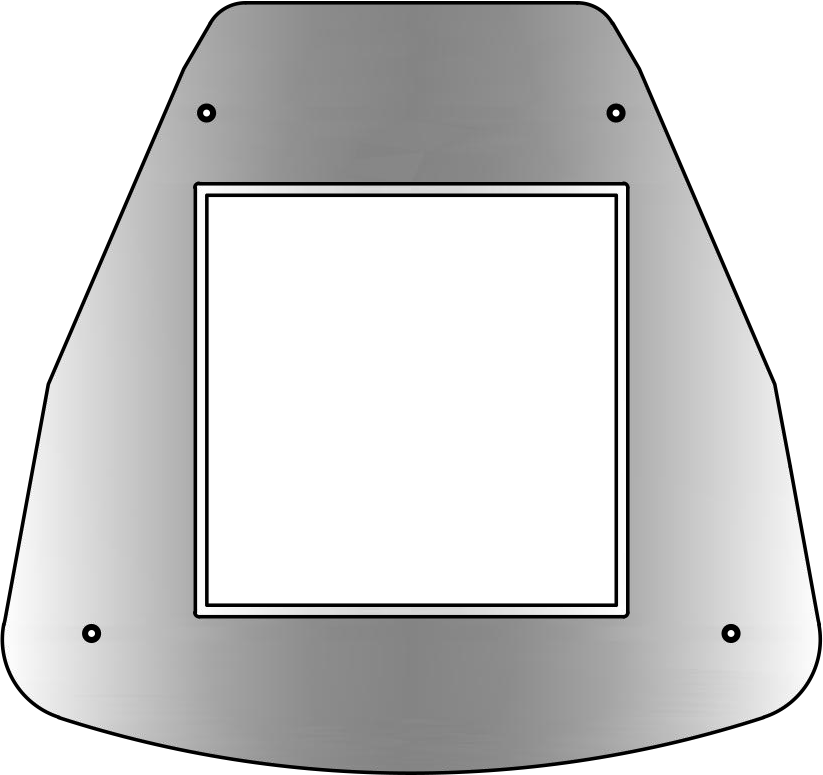

50 x 50 cm

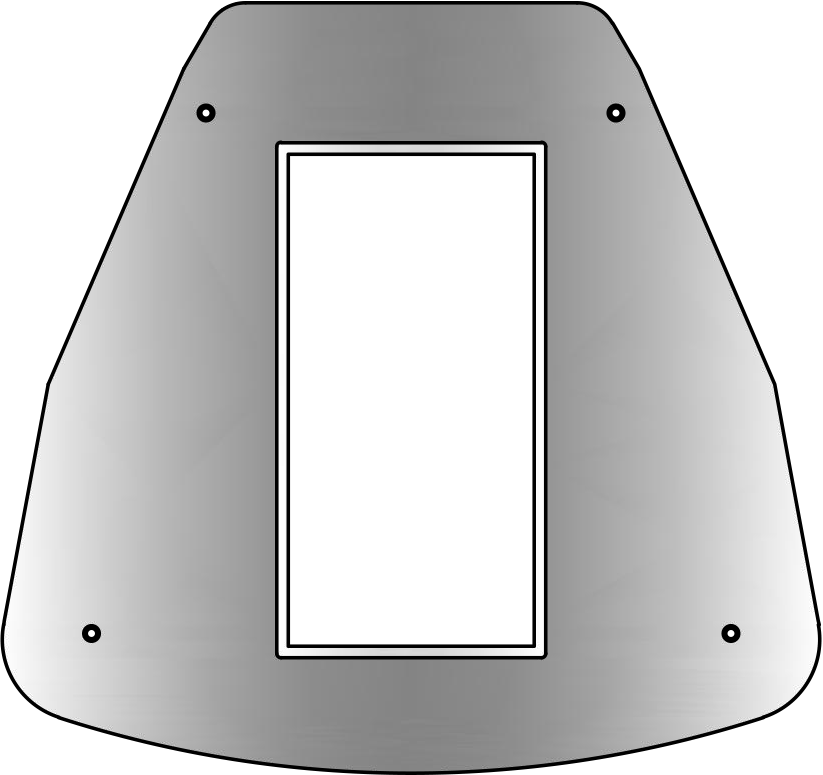

30 x 60 cm

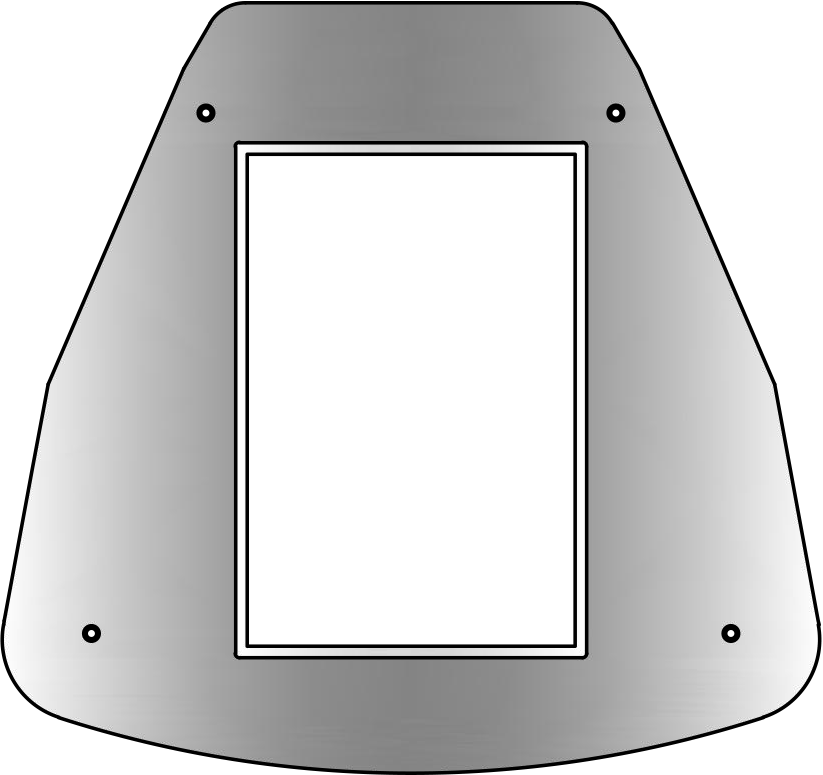

40 x 60 cm
